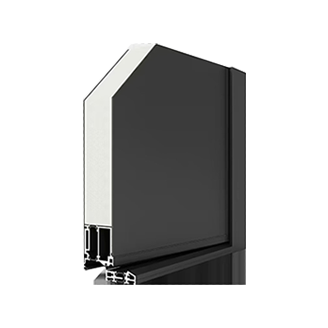

XD65_AL Entrance Door

XD65_AL Entrance Door

XD65_AL entrance door meets RC3 security standards and features an intelligent locking system with options for facial recognition, finger scan, remote control, touch activation, and even SmartTouch (keyless) unlocking. These diverse unlocking options provide greater flexibility for various use scenarios. Moreover, the intelligent locking system can be integrated with market mainstream smart home Apps and protocols.

Get A Quote

Description

A functionality and security guaranteed entrance door system

The entrance door is not only the gateway to the interior but also the first impression that showcases the aesthetic and inspiration of the home owner and designer.

XD65_AL entrance door meets RC3 security standards and features an intelligent locking system with options for facial recognition, finger scan, remote control, touch activation, and even SmartTouch (keyless) unlocking. These diverse unlocking options provide greater flexibility for various use scenarios. Moreover, the intelligent locking system can be integrated with market mainstream smart home Apps and protocols.

Furthermore, the XD65_AL system provides a variety of solutions, including single-leaf, double-leaf, and unequal double-leaf configurations, with both inward and outward opening options. The flush-fitted door leaf design enhances the entrance door’s appearance, imparting a more international and modern aesthetic.

The aluminium-paneled entrance door system represents the perfect blend of durability and minimalist design, offering unmatched durability and a sleek, minimalist appearance that seamlessly integrates with modern architectural styles.

Details

U-value (W/(㎡·K)) Sound Reduction (dB) Water Tightness (Pa) Burglar Resistance
1.7 35 700 RC3

Overview

XD65IN_AL Entrance door XD65OU_AL Entrance door
Design
Opening Inwards opening Outwards opening
Opening type Single, double, unequal double leaf Single, double, unequal double leaf
Basic depth (mm) 66 66
Vent frame depth (mm) 66 66
Face width of frame, low threshold (mm) 19.4 16
Face width of vent frame, low threshold (mm) No No
Face width of frame, high threshold (mm) 80 53.6
Face width of vent frame, high threshold (mm) No No
Threshold height (mm) Low threshold: 19
High threshold: 80		 Low threshold: 11
High threshold: 80
Barrel hinge Yes Yes
T profile No No
Meeting stile No No
Motorised locking module Yes Yes
Sintered stone (selective) Yes Yes
Surface finish Powder coating Powder coating
Fixed lights Yes Yes
Leaf Data
Min.-max. leaf height (mm) 2000-3000 2000-3000
Min.-max. leaf width (mm) 550-1200 550-1200
Max. leaf weight (kg) 250 250
Panel thickness (mm) 66 (3+60+3) 66 (3+60+3)
Implementation Scenario
Façade insert unit Yes Yes
Conservatory insert unit Yes Yes
Parameters
U values in W/(㎡·K) 1.7 1.7
Sound reduction (dB) 35 35
Air permeability (m³/(m·h)) 0.5 0.5
Water tightness (Pa) 300 700
Wind load resistance (KPa) ≤5 ≤5
Burglary resistance RC3 RC3

Planning Highlight

A high standard of security: up to RC3

A wide range of unlocking options: facial recognition(mask mode available), finger scan, remote control, touch activation, and even SmartTouch (keyless) unlocking

An extensive array of handle options caters to the diverse design aesthetics of various architectural types

Doors are available in single, double, or unequal double leaf configurations, designed for both inward and outward opening

Threshold profiles available in 2 variants: low threshold with 19mm height and high threshold with 80mm height

Options for fanlights, side fixed glazing, or openable configurations, compatible with the CIVRO XW window series

Leaf enclosing material: 3mm cold-rolled aluminium sheet(standard), sintered stone(selective)

In terms of leaf enclosing materials, options include double-sided aluminium sheet or sintered stone cladding, as well as designs featuring one side with aluminium and the other with sintered stone

Compatible with the window series CIVRO XW65

Important Note

All product catalogs and planning data such as product parameters and performances, detailed drawings, attachment to building structure drawings and DWG files, which you obtain from our website, digital centre, franchisers or other channels and which you can save to your computer, are examples which are intended to help you plan and design your project. These contents must be checked for its suitability in the relevant structural scenario. The technical and legal regulations, the site conditions, and the design and structural requirements, must be assessed and planned independently by the developer and observed by the company contracted to do the work. Data or descriptions in these documents may be modified or amended due to technique improvement or design optimisation. PLEASE BE AWARE OF NECESSITY OF PRE-CHECK TO AVOID ANY MISUNDERSTANDING OR PLANNING LOSE.

Be the first to review “XD65_AL Entrance Door”

Related products

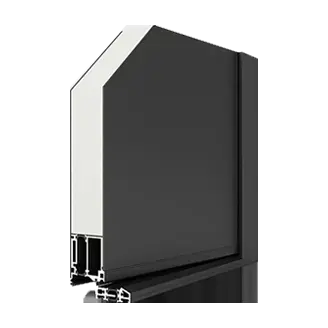

XD80_AL Entrance Door
