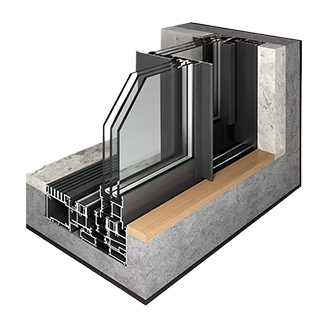

Enfini Pro PD65 Sliding Door

The Enfini Pro PD65 sliding system features an elegant design that achieves expansive transparent surfaces with a minimalist aesthetic. This premium aluminium sliding system merges an unbounded view with exceptional performance. Its 55mm bottom frame construction height is designed to accommodate reduced flooring seamlessly. With options for triple glazing and various insulation levels, the Enfini Pro PD65 is an ideal selection for contemporary, low-energy project.

Description

A sliding system that’s more than just slender

The Enfini Pro PD65 sliding system features an elegant design that achieves expansive transparent surfaces with a minimalist aesthetic. This premium aluminium sliding system merges an unbounded view with exceptional performance. Its 55mm bottom frame construction height is designed to accommodate reduced flooring seamlessly. With options for triple glazing and various insulation levels, the Enfini Pro PD65 is an ideal selection for contemporary, low-energy project.

Now it comes with optional motorisation, allows smooth operation of heavy moving vents of up to 540kg and fits comfortably in your hand with minimalist handle. The motorised upgrade, neatly integrated inside the profiles, makes your life easier and safer, as smart motion detectors prevent obstacles of getting stuck between the vents.

Details

U-value (W/(㎡·K)) Sound Reduction (dB) Water Tightness (Pa) Burglar Resistance
1.7 32 350 RC2 (Hardware)

Overview



Specification Value
Design
Opening Sliding
Min.-max. basic depth (mm) 173
Vent depth (mm) 65
Face width of interlock section (mm) 28
Face width of frame (mm) 55
Face width of vent frame (mm) 36.6
Face width of meeting stile (mm) No
Face width of top outer frame (mm) 75
Face width of bottom outer frame (mm) 55
Min.-max. face width of mullion (mm) 55
Threshold height (mm) 50
Reinforcement interlock section No
Number of tracks Double track
Concealed drainage Yes
Ventilation vent No
Integral glass guardrail No
Fly screen No
Surface finish MED
Vent Data
Min.-max. vent height (mm) 1600-3500
Min.-max. vent width (mm) 800-2800
Max. vent size (m²) 7.2
Max. vent weight (Kg) 540
Min.-max. glass thickness (mm) 38/48
Glazing method Wet glazing
Implementation Scenario
Façade insert unit Yes
Conservatory insert unit Yes
Parameters
U values in W/(㎡·K) 1.7
Sound reduction (dB) 32
Air permeability (m³/(m·h)) 1
Water tightness (Pa) 350
Wind load resistance (KPa) ≤2.5
Burglar resistance RC2



Planning Highlight

Now it comes with optional motorisation

The glass rebate has a height of 15mm, providing ample stability and security for glass installation

The 28mm interlock section face width offers an uninterrupted and expansive view

Thanks to the 58mm glass rebate, glass thicknesses ranging from 36mm to 48mm, including triple glazing and 12mm insulated glass, can be accommodated

The special designed CSE (CIVRO Self Equilibrium) self-balancing roller assemblies, allowing fine vertical adjustments to simplify installation. The modified POM rollers offer greater strength and low-noise operation under high loads

The lower wheels are detachable by accessing from the side of the frame with a simple lift rather than moving the whole vent out from the frame. Tracks can be easily cleaned due to special tailored roller assemblies

Reduced frame view to only 13mm and 5mm through concealed side and top vent frame

The customised concealed gutter and stepped drainage structure provides better water performance, without adding thresholds

A concealed drainage design ensures wheelchair-friendly access

The BT locking mechanism supports micro-ventilation functionality

Important Note

All product catalogs and planning data such as product parameters and performances, detailed drawings, attachment to building structure drawings and DWG files, which you obtain from our website, digital centre, franchisers or other channels and which you can save to your computer, are examples which are intended to help you plan and design your project. These contents must be checked for its suitability in the relevant structural scenario. The technical and legal regulations, the site conditions, and the design and structural requirements, must be assessed and planned independently by the developer and observed by the company contracted to do the work. Data or descriptions in these documents may be modified or amended due to technique improvement or design optimisation. PLEASE BE AWARE OF NECESSITY OF PRE-CHECK TO AVOID ANY MISUNDERSTANDING OR PLANNING LOSE.
