ACW120 Curtain Wall Façade

Description

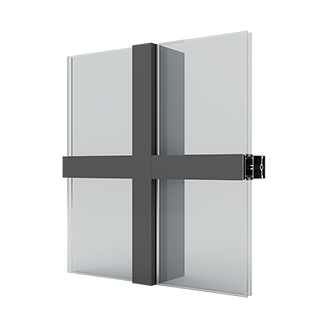

The ACW120 mullion/transom façade system features a narrow face width of 60mm, offering high flexibility and a broad design range for high-end residential and commercial construction. This system uses the same profiles for both mullions and transoms, creating a consistent contour. When combined with CIVRO opening units, the ACW120 allows for floor-to-ceiling light entrance and maximum views. In terms of user comfort, system-integrated components ensure that motorised elements, such as automated CIVRO parallel opening windows, ventilation windows, and sunshading systems, can be easily and reliably integrated.

Details

Specification	ND55IN_E Door	ND55OU_E Door
Design
Opening	Inwards opening	Outwards opening
Opening type	Single, double, unequal double leaf	Single, double, unequal double leaf
Basic depth (mm)	55	55
Vent frame depth (mm)	55	55
Face width of frame, low threshold (mm)	19.6	16
Face width of vent frame, low threshold (mm)	77.6	104
Face width of frame, high threshold (mm)	80	53.6
Face width of vent frame, high threshold (mm)	77.6	104
Threshold height (mm)	Low: 19 / High: 80	Low: 11 / High: 80
Barrel hinge	Yes	Yes
T profile	No	No
Meeting stile	No	No
Surface finish	MED, powder coating	MED, powder coating
Fixed lights	Yes	Yes
Leaf Data
Min.-max. leaf height (mm)	2000-3000	2000-3000
Min.-max. leaf width (mm)	550-1200	550-1200
Max. leaf weight (Kg)	250	250
Min.-max. glass thickness (mm)	7.5-32.5	7.5-32.5
Implementation Scenario
Façade insert unit	Yes	Yes
Conservatory insert unit	Yes	Yes
Parameters
U values in W/(㎡·K)	3.3	3.3
Sound reduction (dB)	30	30
Air permeability (m³/(m·h))	0.5	0.5
Water tightness (Pa)	700	1000
Wind load resistance (KPa)	≤5	≤5
Burglar resistance	RC3	RC3

Overview

	ACW120 Curtain Wall
Design
Mullion depth (mm)	166
Transom depth (mm)	125
Face width of mullion (mm)	60
Face width of transom (mm)	60
Min.-max. glass thickness (mm)	24
Surface finish	MED, powder coating
Mullion Data
Min. mullion width (mm)	600
Min.-max. mullion height (mm)	1000-3000
Parameters
U values in W/(㎡·K)	2.2
Sound reduction (dB)	35
Air permeability (m³/(m·h))	0.21
Water tightness (Pa)	700
Wind load resistance (KPa)	≤4.0

Planning Highlight

Reliable design of large spans

Optimised thermal insulation achieved through advanced thermal break profiles

Combine with CIVRO opening units

Important Note

All product catalogs and planning data such as product parameters and performances, detailed drawings, attachment to building structure drawings and DWG files, which you obtain from our website, digital centre, franchisers or other channels and which you can save to your computer, are examples which are intended to help you plan and design your project. These contents must be checked for its suitability in the relevant structural scenario. The technical and legal regulations, the site conditions, and the design and structural requirements, must be assessed and planned independently by the developer and observed by the company contracted to do the work. Data or descriptions in these documents may be modified or amended due to technique improvement or design optimisation. PLEASE BE AWARE OF NECESSITY OF PRE-CHECK TO AVOID ANY MISUNDERSTANDING OR PLANNING LOSE.
